| Weight | 276 kg |
|---|---|
| Make | Weg |
| Power | 30kw |
| Voltage | 380-415/660-690 V |
| Phase | 3 |
| Pole | 4 |
| Motor speed | 1400 rpm (4 pole) |

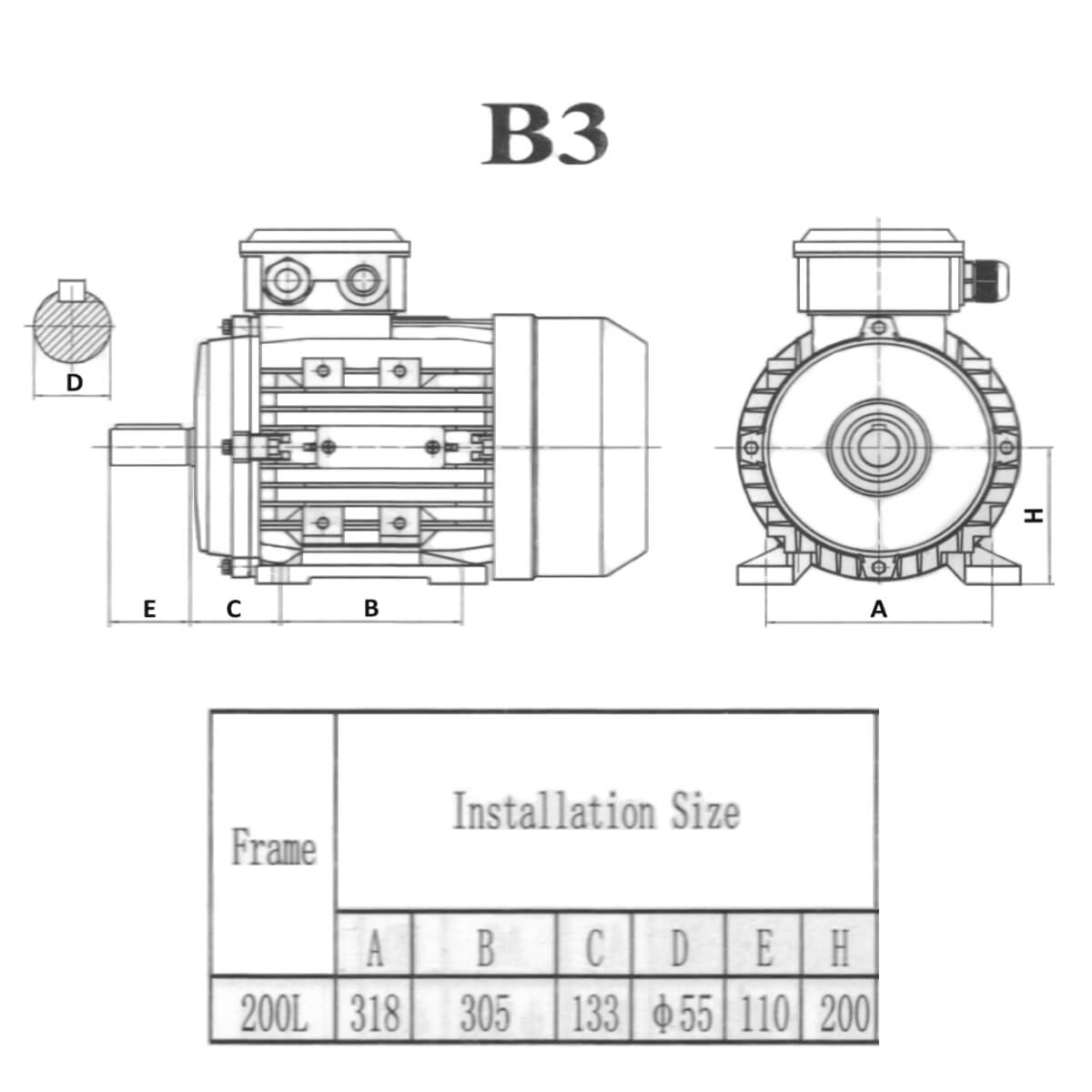

| Frame | 200L |
| Frame Material | Cast iron |
| Efficiency | IE3 – Premium efficiency |
| Enclosure | CLOSED |
| Insulation Class | F (155 Degrees C) |
| Ingress Protection (IP) | 55 |
| Mounting | |
| Weight | 265 kg |
Weg electric motors with cast iron frame have flexible mounting, solid and whole feet, lower noise levels and operating temperatures, this electric motors are perfectly suitable for a great variety of industrial applications.
This is also available in reduced frame 180L Optional/High output design please contact us.
The IE3 has premium efficiency and reliability.
Price range: €3,785.00 through €3,958.00
