1.1kw, 3 Phase, 6 Pole (1000rpm), Weg Motor, Frame 90L, Aluminium, IE3

Representative image only

Product features

Additional information

Weight 10 kg
Make

Weg

Power

1.1kw

Voltage

220-240/380-415 V

Phase

3

Pole

6

Motor speed

1000 rpm (6 pole)

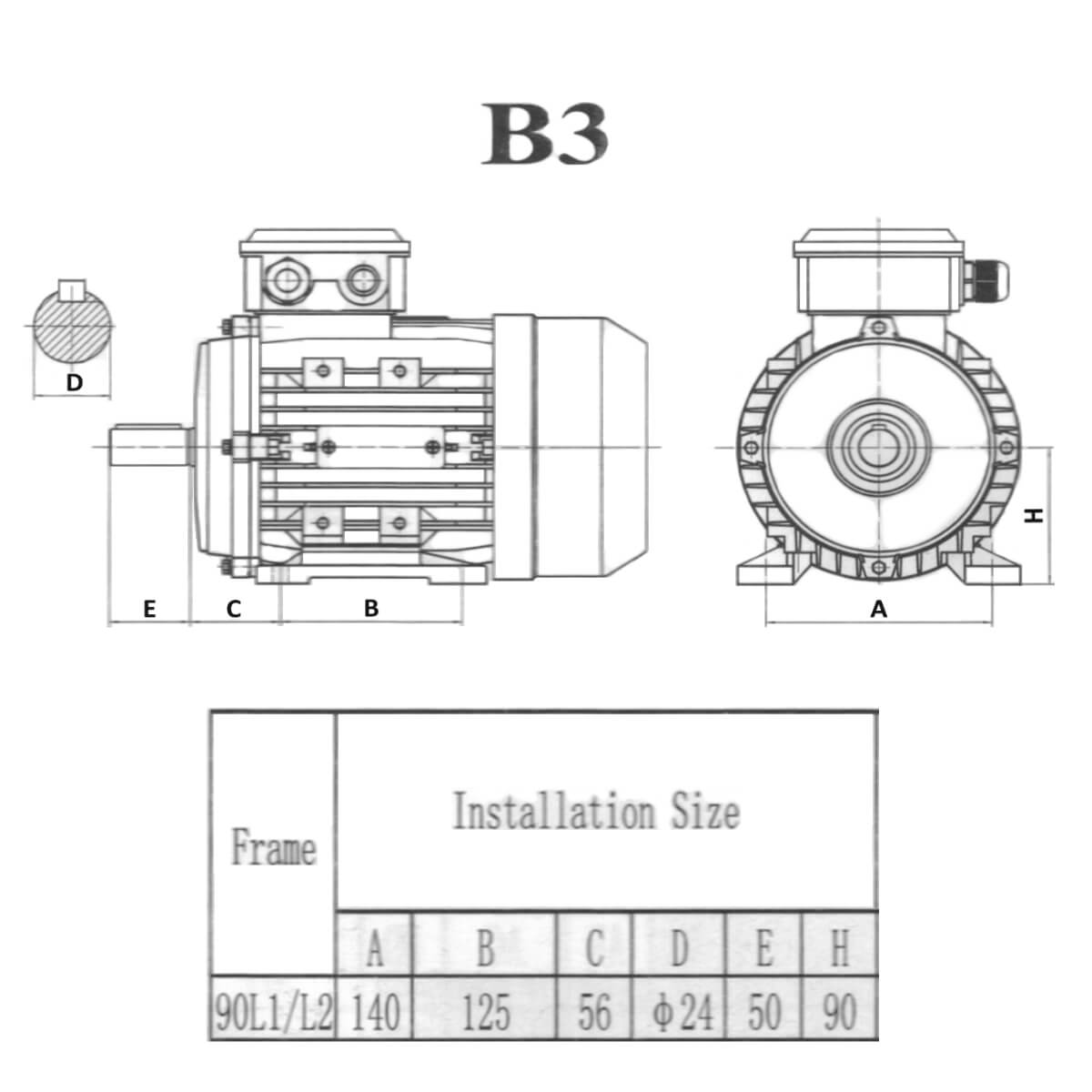

Frame

90L

Frame Material

Aluminium

Efficiency

IE3 – Premium efficiency

Enclosure

CLOSED

Insulation Class

F (155 Degrees C)

Ingress Protection (IP)

55

Mounting

, ,

Weight

29.5 kg

Weg electric motors with aluminum frame and removable feet provide great flexibility and facilitate the change of configuration. These motors are interchangeable with the cast iron motors.

The IE3 has premium efficiency and reliability.

361.33379.59
