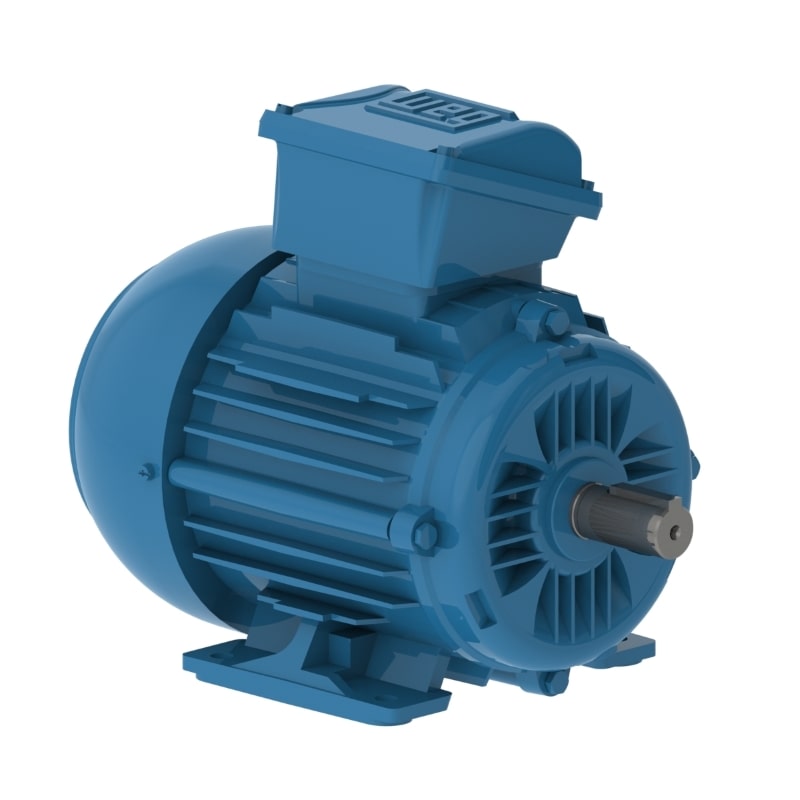

9.2kw, 3 Phase, 4 Pole (1400rpm), Weg Motor, Frame 132M, Aluminium, IE3

Representative image only

Product features

Additional information

Weight 10 kg
Make

Weg

Power

9.2kw

Voltage

380-415/660-690 V

Phase

3

Pole

4

Motor speed

1400 rpm (4 pole)

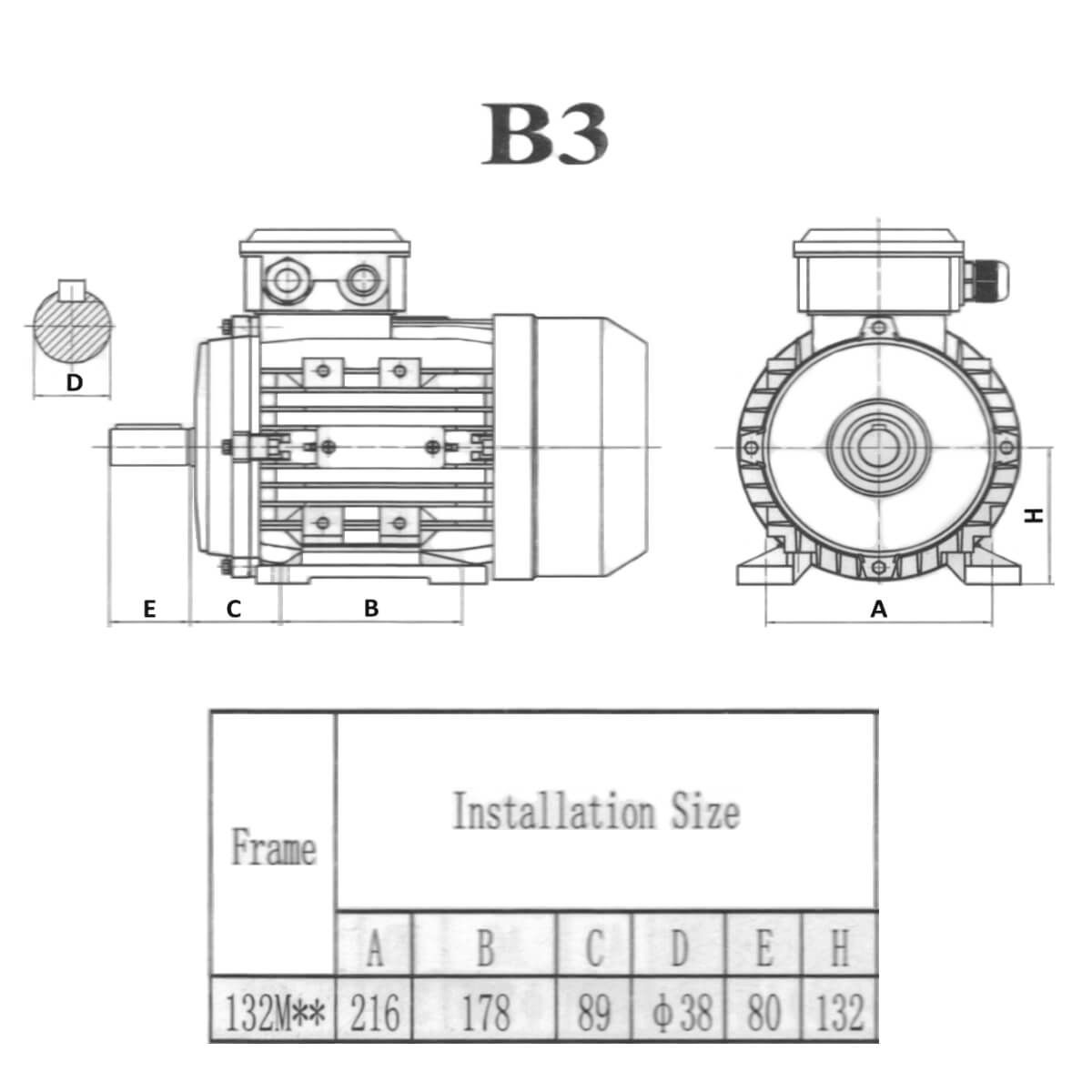

Frame

132M

Frame Material

Aluminium

Efficiency

IE3 – Premium efficiency

Enclosure

CLOSED

Insulation Class

F (155 Degrees C)

Ingress Protection (IP)

55

Mounting

, ,

Weg electric motors with aluminum frame and removable feet provide great flexibility and facilitate the change of configuration. These motors are interchangeable with the cast iron motors.

The IE3 has premium efficiency and reliability.
