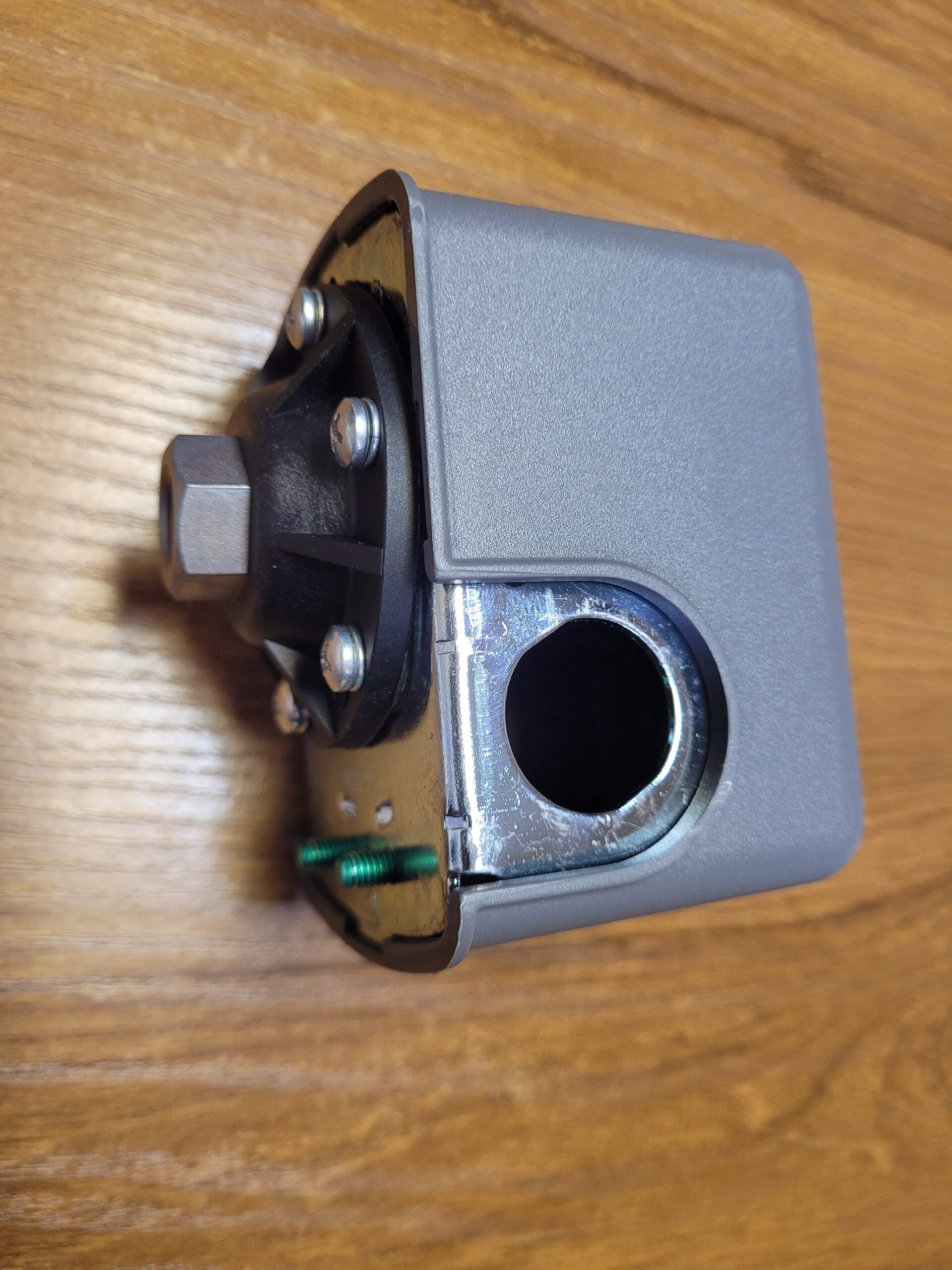

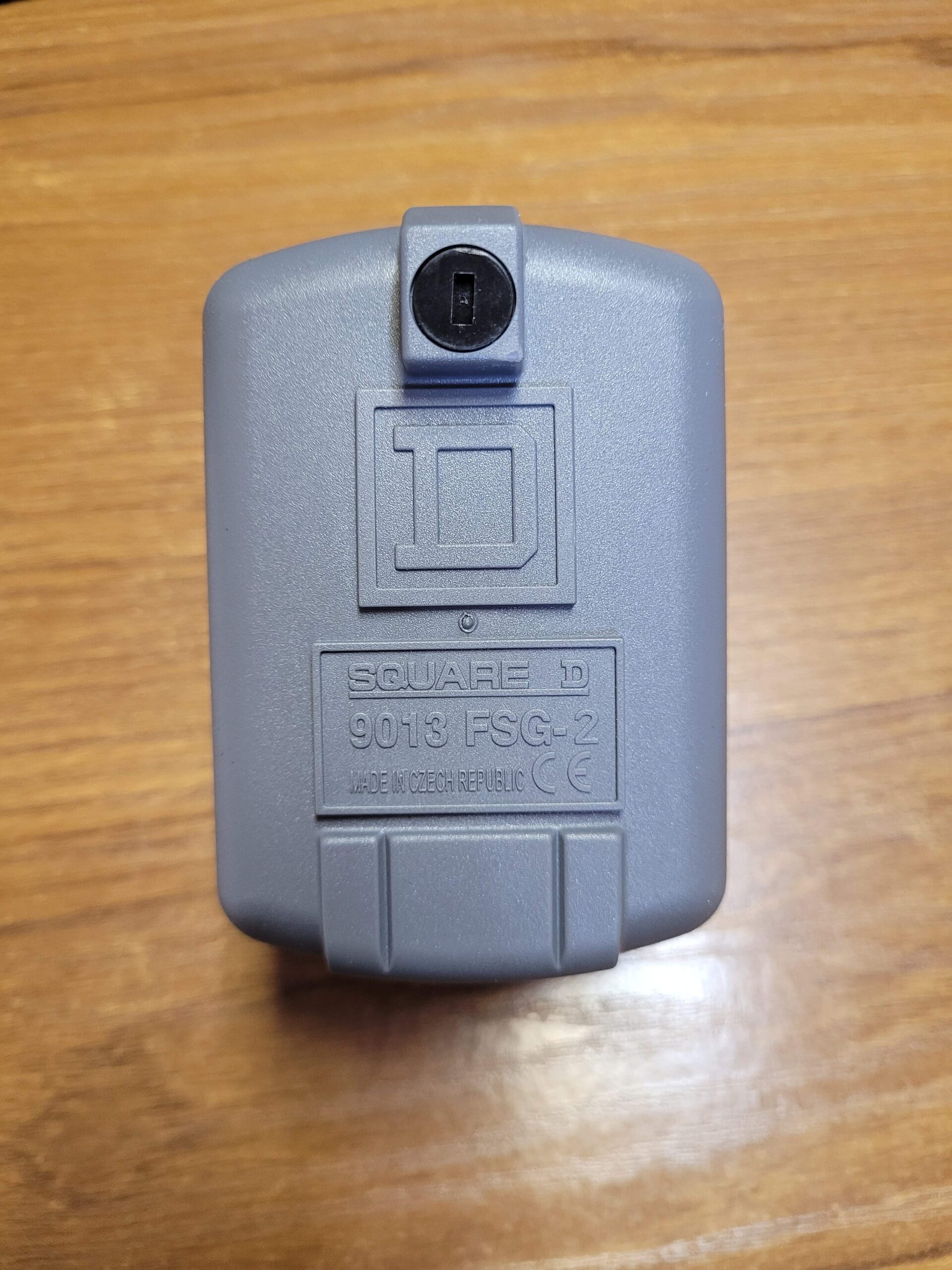

SQUARE D PRESSURE SWITCH FSG2 9013 1.4/4.6BAR

The Square D pressure switch is used to regulate the cut in and cut out pressure on a water pump system. It comes with two adjustable internal regulators which can be manually set to alter the cut in and cut out pressure of the system. For use with submersible or above ground well pumps, reciprocating pumps, jet pumps or as a replacement switch.

Pressure can be manually adjusted
Standard setting 20/40 psi
Adjustable upt to 40/60 psi
1/4″” Female Threads
Dimensions:

Length: 95mm
Depth: 120mm
Height: 65mm
