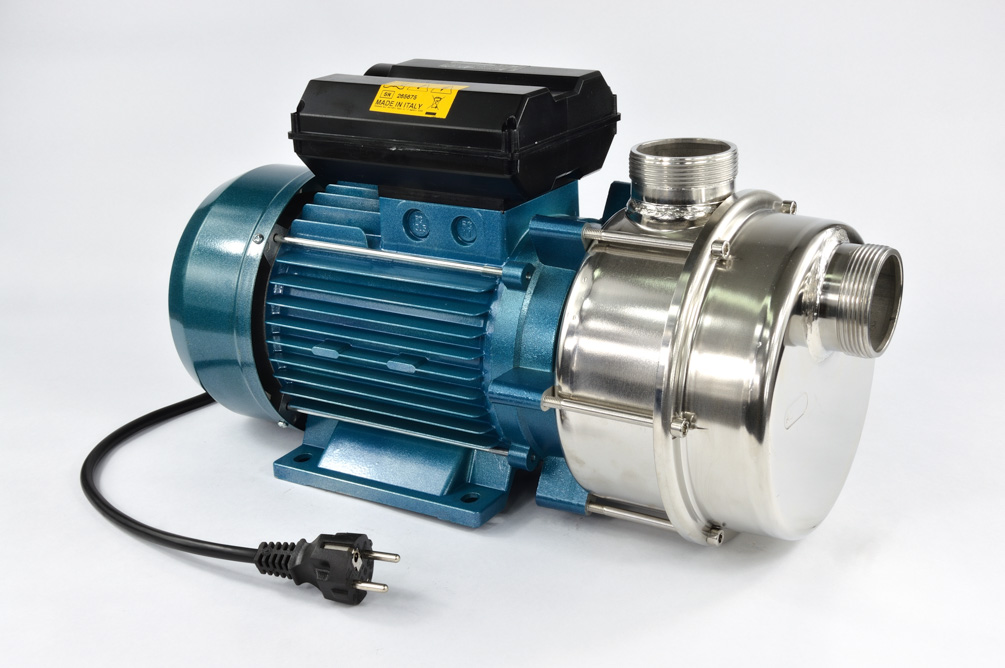

Tellarini Liquid (Milk) Pump ALM50, 230V

Representative image only

Product features

Additional information

Head (H)

1m to 10m
Flow Rate (Q)

197-132 l/min

The best solution for the suction and transfer of liquids, thanks to the strong self-priming capacity and the ability to run even with discontinuous presence of the liquid in suction. The ALM series, entirely made of AISI 316 stainless steel, is particularly suitable for corrosive and food liquids. Equipped with oversized single-phase asynchronous motors and long-lasting rotary switches, they are designed for heavy applications. For each application, it is necessary to check the suitability and choose appropriate gaskets.

The product are particularly suitable for use:

  • enology (wine, musts)
  • food industry (oil, vinegar, brine, fruit juices, beer wort, milk)
  • chemical industry(corrosive liquids)
  • oil industry (olive oil, seed oil)
  • professional use (continuous over time and heavy-duty applications, installation on systems)
  • industry (installation on plant, machinery, machinery, production lines)

Hydraulic specifications

  • Maximum capacity : 200 lt/min
  • Maximum head : 12 m
  • Gasket on the shaft: Mechanical gasket
  • Maximum priming height : 6 m
  • Threaded ports: 2″
  • Maximum liquid density 1.1g/cm3 free of hard particles in suspension
  • Maximum temperature 90°C
  • Not suitable for aggressive liquids towards pump construction materials and gaskets (see technical specifications)
  • Not appropriate for the transfer of petrol, solvents and, in general, in environments with risk of explosion and fire
  • Possibility of reversing the pumping flow
  • Coupling with impeller locked
  • Possibility of working for short periods with closed pipes
  • During installation, the pump must be filled with liquid, subsequently this operation is no longer necessary

Technical specifications

Material

  • Pump Parts: AISI 316
  • Shaft : AISI 316
  • Impeller : AISI 316
  • Gaskets: NBR
  • Mechanical gasket ceramic/graphite/nbr

MOTOR

  • Powered with a Single-phase asynchronous 230V 50Hz
  • Equipped with MEC 90 motor (1400 rpm 2.0HP / 1,5 KW)
  • Service S1
  • Ip protection degree 44
  • Insulation class F
  • Power connection via cable end Cable with Schuko plug 2m
  • Switching on and reversing of the pumping flow through inverter switch
Pump features
Ports ∅ Hose fitting Priming ability Qmax Hmax
2″ 50 mm 6 m 200 lt/min 12 m
Capacity (l/min)
1m 5m 10m 20m
197 lt/min 164 lt/min 132 lt/min 67 lt/min

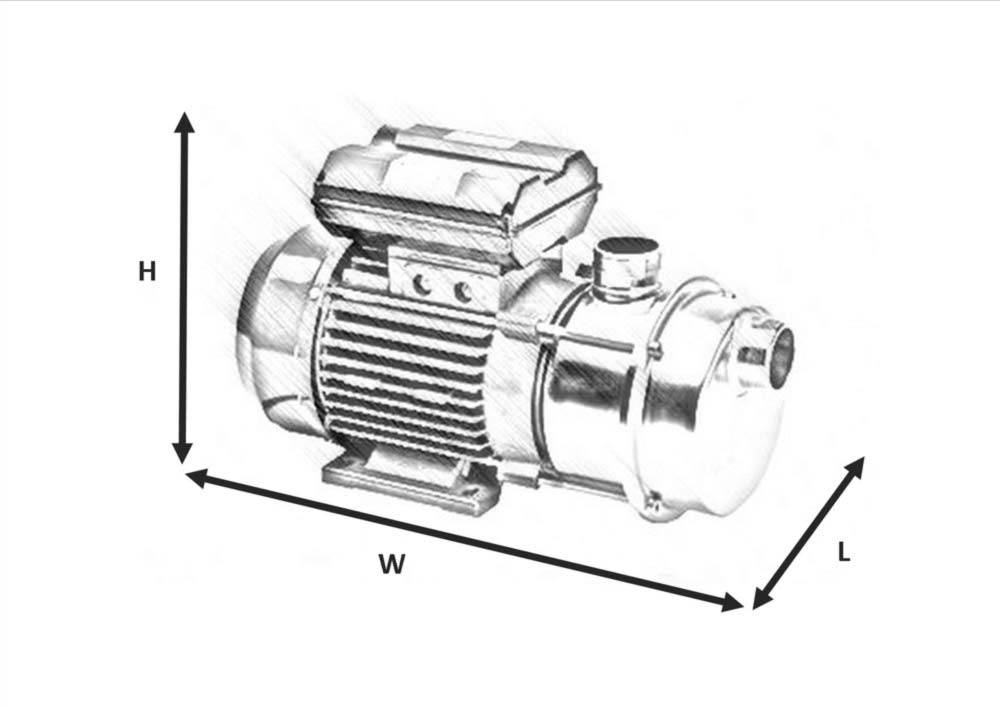

Overall dimensions
W L H Weight Leq A*
438 mm 200 mm 250 mm 20.5 kg 83 dB



€1,664.00 €2,046.72 incl. VAT

Out of stock

Contact us for this product
